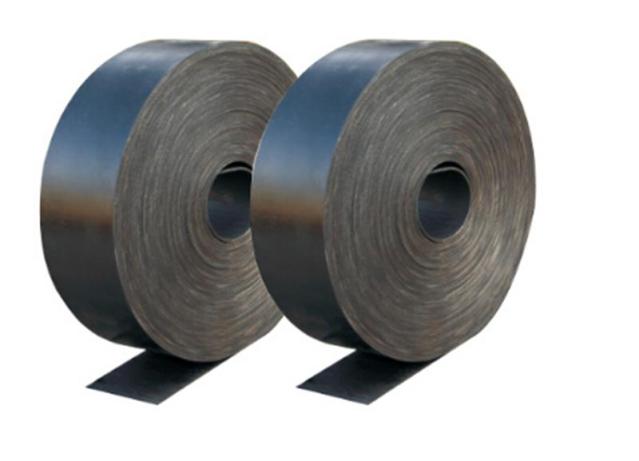

Elevator Conveyor Belting

Black rubber elevator belts are build up of polyester yarns in the warp (longitudinal) and nylon yarns in the weft (transverse) directions.
The standard ranges includes NBR and SBR.
Type 1:NBR
Tencical specification
Application: nbr nitrile provides good resistance to oil and fat. Suitable for products containing oil and fat up to 80 celsius degrees.
Covers: NBR 100% nitrile butadiene synthetic rubber.
Carcass: polyester fabric warp and polyamide fabric weft plies (EP) separated by 0. 3mm thick synthetic rubber laminates of 100% nitrile.
Temperature range: 20 celsius degress below zero~ 80 celsius degrees
Standard: DIN22102
Type 2: SBR
Tencical specification
Application: SBR offers goods abrasion resistance. Suitable for oil and fat free products up to 70 celsius degrees
Covers: SBR styrene butadiene rubber.
Carcass: polyester fabric warp and polyamide fabric weft plies (EP) separated by 0. 3mm thick synthetic rubber laminates of sbr.
Temperature range: 20 celsius degrees below zero ~ 70 celsius degrees
Standard: DIN22102
Special ranges like flame retardant, anti-static and oil resistant belt can be made according to your request.
